ROOF-TOP AIR CONDITIONER

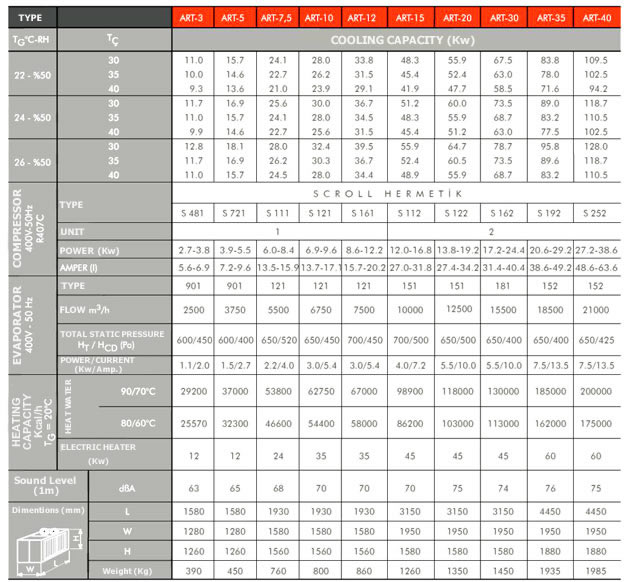

Roof-top air conditioners are used for hyper-markets, business and shopping centers, cinemas, theaters, performance centers, social facilities, industrial factories. It has range from 12 to 130 kW cooling capacity. Roof-top air conditioners are produced cooling, or optionally only the heat pump (heat pump). In addition, hot water coil for heating or electric heating element into the device placed by the selection.


1 - FRAME
Made of carcass-formed galvanized steel or aluminum as a special powder painted profiles .The device has been isolated against sound and heat with 25 mm glass wool insulation . The device has special leads in order to reach every point inside.This helps maintanence and service.
2 - COMPRESSOR
R407 Caisa hermetic scroll compressors are used 1 or 2 pcs according to capaticy values. Oil sight glass, suction valves and crankcase heaters are standard.
3 - EVAPORATOR BATTERY
Passing through air velocity, 2.5 m / sec and specific condensation pan under the drain pipe and the water droplets are thrown out. Each compressor devices operates as an independent circuit. The surface of the battery is fully used.
4 - EVAPORATOR FAN
Çift emişli santrifüj, tek veya çift fan kullanılmıştır. Double-priming centrifugal, single or dual fan used.Static and dynamic balancing of fans have been checked. Sessiz verimli ve güvenli olarak çalışırlar. It works quiet, efficiently and safely.
5 - AIR FILTER
EU 3 filters are used. It can be washed and easily customizable.
6 - CONDENSER BATTARY
It has copper tube and aluminum wings. Copper tubes and fins mechanically compressed and provided with full contact. Heat efficiency is high.There are 1 or 2 independent battery.
7 - CONDENSER FAN
Aerodynamic structure (rotor - motor type) directly coupled to the appropriate safe working conditions, quiet and highly efficient fans that the external environment.According to the need to control the number of working Presostatik fan can be adjusted automatically.
8 - COOLING CIRCUIT ELEMENTS
It is equipped with expansion valve, solenoid valve, sight glass, on - off and charging valves, low - high pressure presostad, frost thermostat, resiver, high-pressure presostad, 4-way heat pump and check valve. All these elements are provided with a smooth and safe operation. Operated devices are tested after manufacturing before transactions.
9 - DAMPERS
Exhaust dampers are placed in as an optional. The standard device is suction from bottom.If requested air can be in and out from the side. Electrical control panel and Microprocessor power panel is completely closed, sealed on the device in accordance with the terms of the external environment. There are contactors, thermals, automatic switches, programmable control unit and microprocessor for power and remote control system.The control process can be done inside. In addition, the building automation system (RS 485) can also be used . If the optional remote control is required, cabling system and LCD with remote control can be done inside the building. As standard, there isfilter pollution warning.
Optional accessories: :
•  Enthalpy controlled economizer
•  Exhaust fans and adapters
•  Hot water battery - 3-way motorized valve
•  Electric Heater
•  Sub-base (added)
•  Fresh air and exhaust dampers
•  Indoor air quality
